The Segway Ninebot Max G3 switch is the main control interface located on the handlebar. It gives the rider quick access to several essential functions without having to use the Segway Mobility app while riding.
From riding modes and turn signals to the horn and lighting, the Segway Ninebot Max G3 switch brings together the main controls used during everyday rides.
In this guide, we explain what each button does, the common signs of a faulty switch and how to replace a damaged unit.
What Is the Role of the Segway Ninebot Max G3 Switch?
The Segway Ninebot Max G3 switch allows the rider to control several scooter functions directly from the handlebar.
Depending on the button used, you can control:
- riding modes;
- customizable functions;
- left and right turn signals;
- hazard lights;
- power;
- main lighting;
- electronic horn;
- acceleration.
The controls are positioned so that the main functions remain easily accessible while riding.
What Do the Segway Ninebot Max G3 Switch Buttons Do?
The Segway Ninebot Max G3 handlebar combines several controls. Understanding each button makes the scooter easier to use and can also help diagnose a problem if one of the controls stops responding.

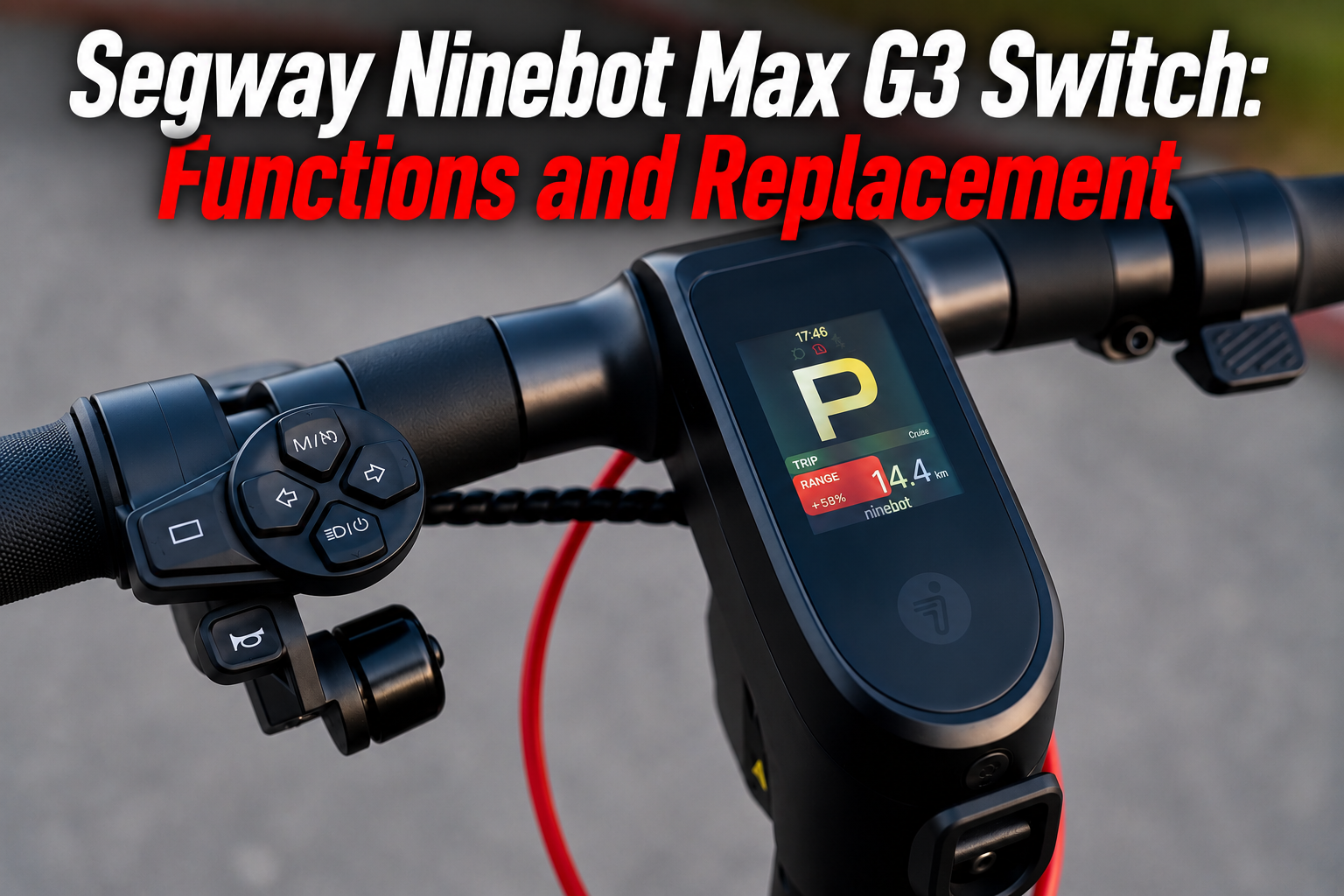

Location and function of the main Segway Ninebot Max G3 controls.
1. Riding Mode Button
Press the button to switch between the different riding modes:
- Eco;
- Drive;
- Sport.
This allows you to quickly change the scooter’s riding mode directly from the handlebar.
2. Customizable Buttons
The Segway Ninebot Max G3 switch also includes customizable buttons.
By default, these buttons activate the electronic horn, but their function can be customized through the Segway Mobility app.
Once configured, they can be assigned to functions such as lighting or other useful shortcuts.
This gives riders the possibility to adapt some of the controls according to their preferences.
3. Turn Signal Controls
A single press activates the left or right turn signal.
Press the corresponding button again to switch the turn signal off.
A long press for approximately 2 seconds can also be used to activate or deactivate the hazard lights.
These controls allow the rider to signal a change of direction without removing their hands from the handlebar.
4. Power and Main Light Button
The power button is used to switch the scooter on and off.
It also provides access to the main lighting function.
If this button becomes damaged or stops responding correctly, you may experience problems switching the scooter on or controlling its lighting.
5. Bell / Electronic Horn
The Segway Ninebot Max G3 includes a dedicated control for producing an audible warning.
The horn allows you to signal your presence to pedestrians, cyclists and other road users when necessary.
If the button is pressed but no sound is produced, check the switch and the associated electrical connections before replacing any component.
6. Electronic Throttle
The electronic throttle is located on the right side of the handlebar and works alongside the other handlebar controls.
It allows the rider to control acceleration progressively.
Although the throttle is a separate physical control, it forms part of the overall handlebar control system and should also be inspected if you experience unusual acceleration behavior.
Why Can the Segway Ninebot Max G3 Switch Fail?
The Segway Ninebot Max G3 switch is regularly used and exposed to vibrations whenever the scooter is ridden.
Several factors can cause damage or malfunction:
- a fall;
- an impact on the handlebar;
- a physically damaged button;
- repeated intensive use;
- damaged wiring;
- a loose connector;
- moisture;
- dirt around the controls;
- internal electrical failure.
A fall directly onto the handlebar can damage the switch even when the external housing does not appear completely broken.
What Are the Signs of a Faulty Segway Ninebot Max G3 Switch?
Several symptoms can indicate a problem with the Segway Ninebot Max G3 switch.
You may notice:
- a button that no longer responds;
- intermittent operation;
- difficulty changing riding modes;
- a turn signal that cannot be activated;
- problems activating the hazard lights;
- the horn not responding;
- lighting controls not working correctly;
- a button remaining stuck;
- a function that works only when the handlebar or cable is moved.
Before replacing the complete switch, determine whether the problem affects only one function or several controls.
Check the Wiring Before Replacing the Switch
A control problem does not automatically mean that the Segway Ninebot Max G3 switch itself is defective.
Before replacing it, inspect:
- the electrical connector;
- the connector pins;
- the wiring;
- the cable routing;
- possible pinched cables;
- damaged insulation;
- signs of moisture or oxidation.
A loose connector can cause intermittent operation and produce symptoms similar to a defective switch.
If the wiring and connections are in good condition but the controls still do not respond correctly, replacing the switch may be necessary.
When Should You Replace the Segway Ninebot Max G3 Switch?
There is no fixed mileage interval for replacing the Segway Ninebot Max G3 switch.
Replacement is mainly necessary when the component becomes damaged or stops functioning correctly.
Consider replacing it if:
- one or more buttons are broken;
- a button remains stuck;
- controls no longer respond;
- operation becomes intermittent;
- the housing is damaged after a fall;
- the internal mechanism is defective;
- the problem remains after checking the connector and wiring.
Because the switch controls several important functions, a faulty unit should be inspected before continuing normal use.
How to Replace the Segway Ninebot Max G3 Switch
Before replacing the Segway Ninebot Max G3 switch, completely switch off the scooter and place it on a stable surface.
Identify the switch mounting points, wiring and electrical connector.
Carefully disconnect the old switch without pulling directly on the wires. Remove the damaged component and install the replacement in the correct position on the handlebar.
During installation, check:
- the orientation of the switch;
- its position on the handlebar;
- the electrical connector;
- the routing of the cable;
- that no wire is pinched;
- that the cable is not excessively stretched;
- the mounting hardware;
- that all buttons can move freely.
Once the new switch is installed, turn the handlebar fully left and right to make sure the wiring remains free throughout the steering movement.
Video Tutorial: Segway Ninebot Max G3 Switch Replacement
Our video tutorial shows the different steps required to remove the original Segway Ninebot Max G3 switch and install the replacement.
Where to Buy a Segway Ninebot Max G3 Switch
Choose a Segway Ninebot Max G3 switch specifically compatible with your scooter to maintain the correct mounting points, connector and control functions.
A compatible replacement allows the damaged original switch to be replaced directly.
What Should You Check After Replacing the Switch?
After installing the new Segway Ninebot Max G3 switch, test every control before returning to normal riding.
Check:
- Eco, Drive and Sport mode selection;
- customizable buttons;
- left turn signal;
- right turn signal;
- hazard lights;
- electronic horn;
- lighting controls;
- power button;
- throttle operation.
Also turn the handlebar completely in both directions and make sure the wiring is not pinched or placed under excessive tension.
Finally, perform a short test ride at low speed in a safe area to confirm that all controls operate normally.
How to Maintain the Segway Ninebot Max G3 Switch
The Segway Ninebot Max G3 switch does not require complicated maintenance, but its condition should be checked regularly.
Make sure that every button moves freely and responds correctly.
After a fall or impact on the handlebar, inspect the switch, throttle, brake controls, wiring and connectors.
If a button begins to work intermittently, investigate the problem early rather than waiting for the control to stop functioning completely.
Maintaining the Controls on Your Segway Ninebot Max G3
The Segway Ninebot Max G3 switch provides quick access to many of the scooter’s most frequently used functions, including riding modes, turn signals, hazard lights, lighting and the horn.
If a control stops responding, first inspect the wiring and connector. If these components are in good condition and the problem remains, replacing the switch can restore normal operation.
For maintenance and repairs, choose Segway Ninebot Max G3 parts tested and approved by the Riders community, selected for their compatibility, reliability and durability.
