The Segway GT3 battery is at the heart of the scooter’s electrical system. It supplies the energy required by the motor and the different electronic components while directly influencing range and available performance.
With a capacity of 19.2 Ah (899 Wh) at 46.8V, the Segway GT3 battery uses Lithium-ion (Li-ion) technology and can supply the motor with the energy required to reach its maximum power of 2400W.
In this guide, we explain the specifications of the Segway GT3 battery, its role, the main signs of battery failure, and how to replace it with our video tutorial.
Segway GT3 Battery Specifications
The Segway GT3 battery has the following specifications:
- Battery: Segway GT3 battery
- Voltage: 46.8V
- Capacity: 19.2 Ah
- Energy: 899 Wh
- Technology: Lithium-ion (Li-ion)
- Compatible with: Segway GT3
- Protection rating: IPX7
- Overcharge protection
- Overheating protection
- Short-circuit protection
- Supplies the motor with enough energy to reach up to 2400W maximum power
These specifications allow the battery to provide the energy required by the Segway GT3 while integrating several important protection systems.
What Is the Role of the Segway GT3 Battery?
The Segway GT3 battery stores the electrical energy required to operate the scooter.
When you accelerate, the battery supplies energy to the motor. It also powers the various electronic systems installed on the GT3.
With 899 Wh of energy, the battery is designed to meet the power requirements of the scooter during everyday riding as well as during harder acceleration and other situations where the motor requires more power.
The Segway GT3 battery can supply the motor with the energy required to reach its maximum power of 2400W.
Segway GT3 Battery 46.8V: Why Is Voltage Important?
Voltage is an important specification when replacing an electric scooter battery.
The Segway GT3 battery operates at 46.8V.
When replacing the battery, it is important to choose a battery specifically compatible with the Segway GT3 rather than selecting one based only on its physical dimensions.
Voltage, electrical compatibility, connectors and communication with the scooter’s electronics must all be suitable for the GT3.
Segway GT3 Battery 19.2 Ah and 899 Wh
The Segway GT3 battery has a capacity of 19.2 Ah and stores 899 Wh of energy.
Watt-hours represent the amount of energy the battery can store. This capacity plays an important role in the scooter’s available range.
However, actual range can vary considerably depending on:
- Rider weight;
- riding speed;
- riding mode;
- acceleration;
- hills and gradients;
- temperature;
- tire pressure;
- general scooter condition.
Two Riders using the same Segway GT3 899 Wh battery may therefore achieve different real-world ranges.
Lithium-Ion Segway GT3 Battery
The Segway GT3 battery uses Lithium-ion (Li-ion) technology.
This technology provides the energy storage required by a high-performance electric scooter while keeping the battery dimensions and weight suitable for the GT3.
The battery also includes protection against:
- overcharging;
- overheating;
- short circuits.
These protections help manage the battery during charging and normal operation.
Segway GT3 Battery IPX7 Protection
The Segway GT3 battery has an IPX7 protection rating.
This provides the battery with significant protection against water exposure.
However, this does not mean that the scooter or its electrical components should intentionally be immersed in water.
After riding in wet conditions, it is still recommended to allow the scooter to dry properly and check for any unusual moisture around electrical components.
What Are the Signs of a Failing Segway GT3 Battery?
As a Lithium-ion battery ages and goes through repeated charging cycles, its performance can gradually decrease.
Several symptoms may indicate that your Segway GT3 battery needs to be checked:
- significantly reduced range;
- battery percentage dropping unusually quickly;
- unexpected power cuts while riding;
- difficulty reaching a full charge;
- unusual behavior while charging;
- significant performance loss under heavy load;
- scooter no longer turning on even after charging.
These symptoms do not automatically mean that the Segway GT3 battery needs to be replaced.
The charger, connectors, wiring or another electronic component may also be responsible.
Segway GT3 Battery Range Loss: Is the Battery Always the Cause?
A decrease in range does not necessarily mean that your Segway GT3 battery is faulty.
Before replacing it, consider whether your riding conditions have changed.
Higher energy consumption can be caused by:
- higher riding speeds;
- frequent hard acceleration;
- more hills;
- cold temperatures;
- low tire pressure;
- heavier loads.
It is therefore better to compare the scooter’s range over several similar rides before concluding that the battery has significantly deteriorated.
What Should You Check Before Replacing a Segway GT3 Battery?
A battery is a major component of the scooter, so it is important to diagnose the problem carefully before replacing it.
If your Segway GT3 has charging or power problems, check:
- the charger;
- the charging connector;
- visible cables and connectors;
- any error codes displayed by the scooter;
- battery behavior during charging;
- the actual change in riding range.
If the battery is physically damaged, deformed or becomes abnormally hot, stop using and charging it until the issue has been properly assessed.
When Should You Replace the Segway GT3 Battery?
There is no fixed mileage at which a Segway GT3 battery must automatically be replaced.
Battery aging depends on several factors, including charging cycles, storage conditions, temperature and how the scooter is used.
Replacement may become necessary when:
- battery capacity has significantly decreased;
- range has become abnormally low after other causes have been ruled out;
- the battery no longer charges correctly;
- repeated power cuts are traced back to the battery;
- the battery is physically damaged;
- a diagnosis confirms a battery fault.
Always use a replacement battery designed specifically for the Segway GT3.

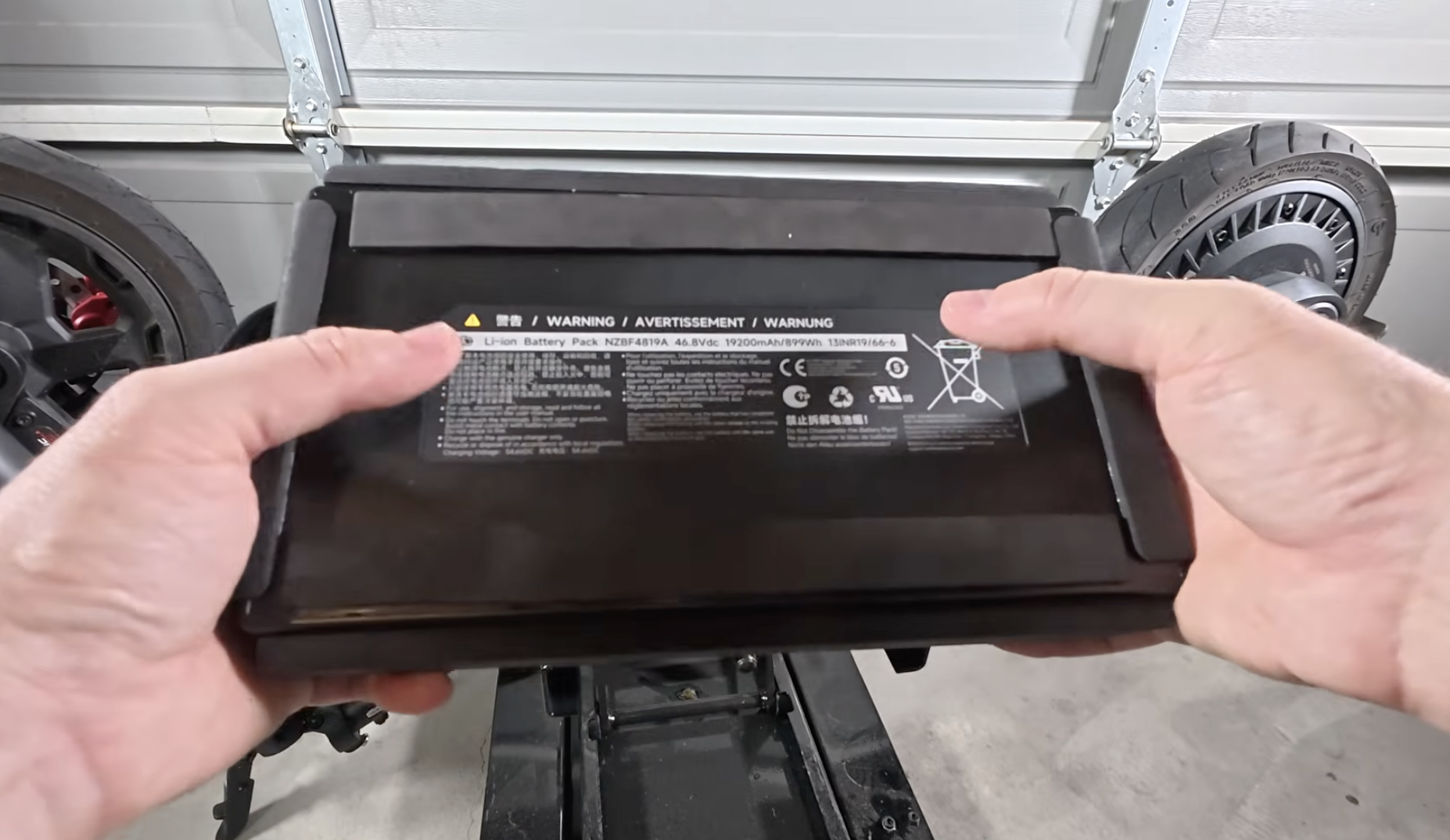

How to Replace the Segway GT3 Battery
Replacing the Segway GT3 battery requires access to the battery compartment, careful disconnection of the original battery and correct installation of the replacement.
A 899 Wh Lithium-ion battery stores a significant amount of energy. Take particular care not to short-circuit, puncture, crush or damage the battery or its connectors during the procedure.
For a clearer explanation of the complete removal and installation process, follow our video tutorial:

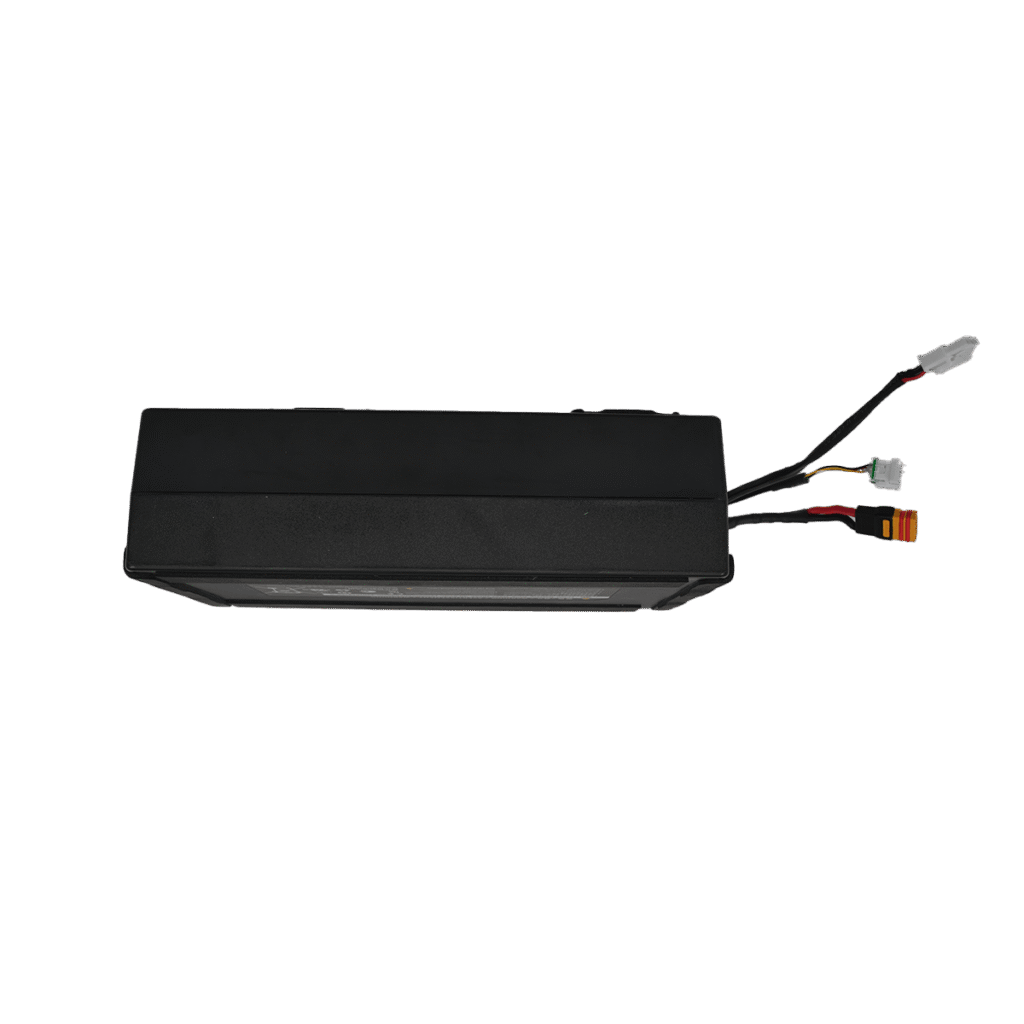

Segway GT3 Battery 46.8V 19.2 Ah 899 Wh
If your original battery is damaged or its failure has been confirmed, use a replacement battery with the correct specifications for the Segway GT3.
How to Maintain Your Segway GT3 Battery
Good charging and storage habits can help preserve the performance of your Segway GT3 battery over time.
Always use a charger suitable for the GT3 and avoid using a charger or battery that shows signs of physical damage.
If the scooter will not be used for an extended period, avoid storing it in extremely hot or cold conditions.
You should also pay attention to unusual changes in range, charging behavior or battery temperature. Detecting an abnormality early can help prevent a more serious problem.
Segway GT3 Battery: 899 Wh to Power Up to 2400W
The Segway GT3 battery combines a 46.8V voltage, 19.2 Ah capacity and 899 Wh of energy.
Its Lithium-ion technology, IPX7 protection rating, and protection against overcharging, overheating and short circuits provide the energy required to operate the Segway GT3 and supply its motor up to its maximum power of 2400W.
If your battery needs to be replaced, you can use our video replacement tutorial and find the compatible Segway GT3 battery tested and approved by the Riders community.
